II.What is a Headway Curve

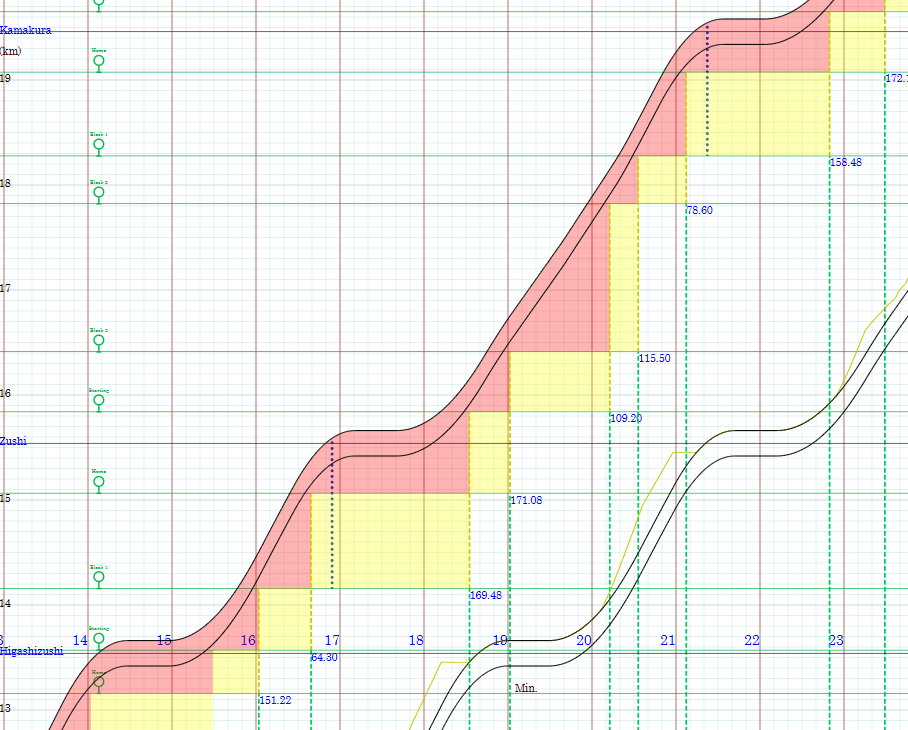

Headway curve is a graphical representation of stations, signals and train  position. The train's head position and tail position are drawn by two pair of curves.

The preceding train and the following train curves are drawn in the same graph. The caution and stop signal aspect zones are also displayed. Pale red areas indicate signals are red and Pale yellow areas indicate signals are yellow. 　
