d.Regenerative Braking Effort

This data is used calculating the regenerative energy, not the train deceleration. The train deceleration is specified at the operation setting.

If the force to decelerate the train is smaller than this force, the regenerative energy is calculated in accordance with the force ratio.

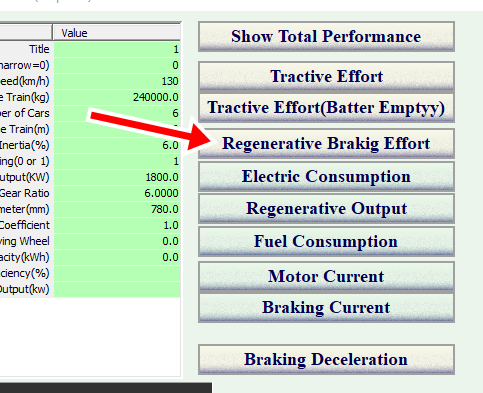

Click "Regenerative Braking Effort" button.

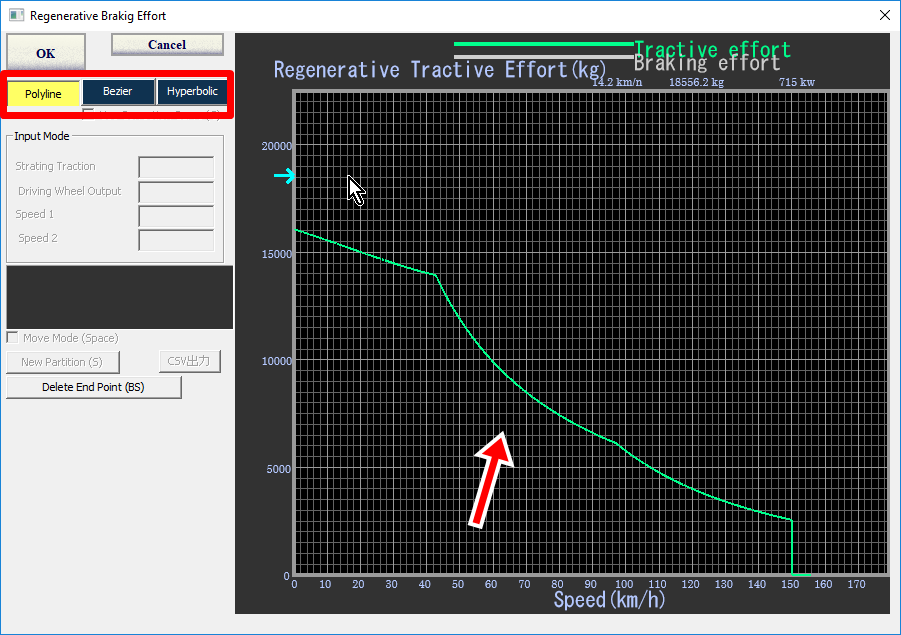

Then specify the curve type.

If the tractive effort data has been already input, it is displayed as reference information.
