IV.Outline of Numerical Input Method

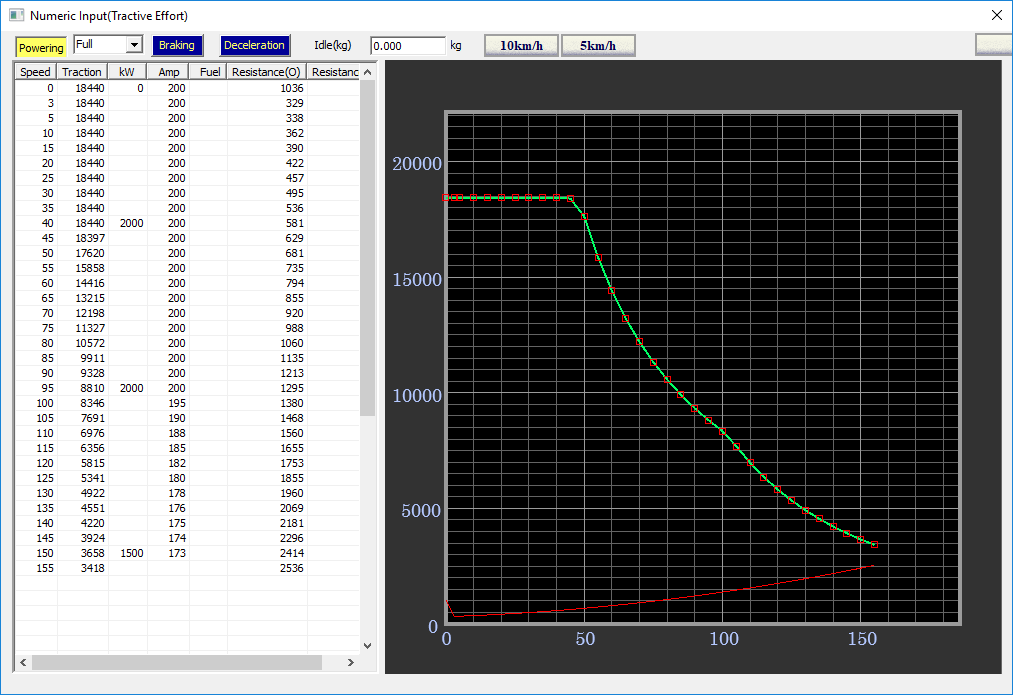

The performance data can be input directly with numerical value.

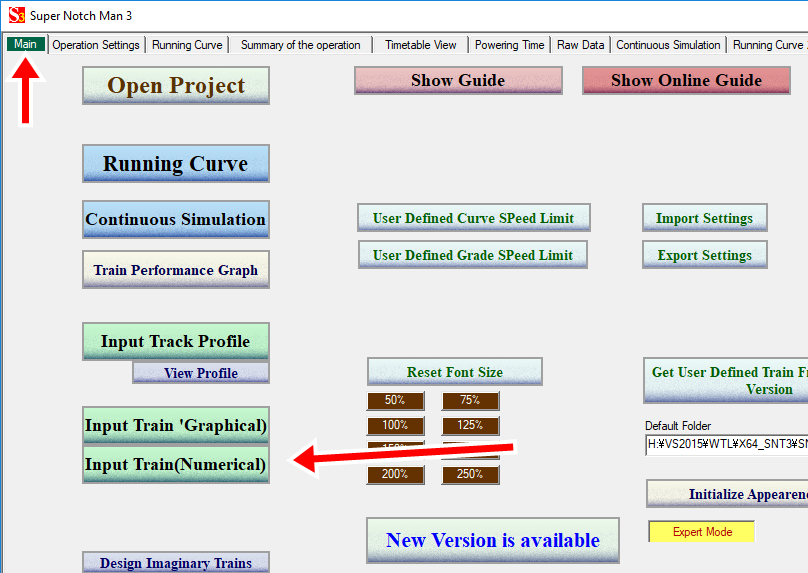

Click "Main" tab and then click "Input Train(Numerical)" button.

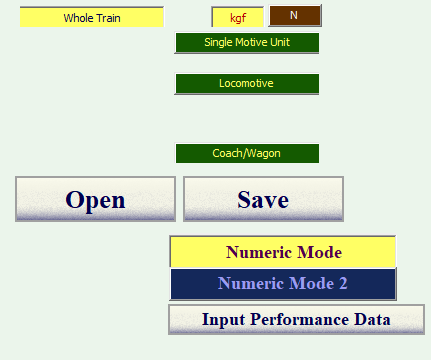

The new dialog box is displayed and there are buttons specify train data types..

These buttons are specific to the train data type .

kgf	The unit of force is kg.
N	The unit of force is Newton.
Whole Train	The data value is that of the whole train.
Locomotive	Base data for "Locomotive Hauled Train"
Single Motive Units	Base data for "Comprised of Motive Unit"
Coach/Wagon	Base data for "Locomotive Hauled Train"
