f.Regenerative Output

This is the regenerative output data at full braking.
To input this data, "Regenerative Braking Effort" data must have been input.

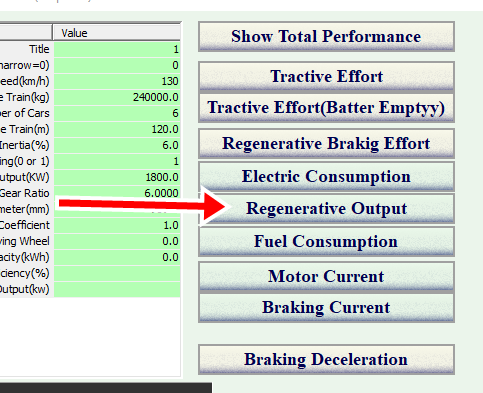

Click "Regenerative Output" button.

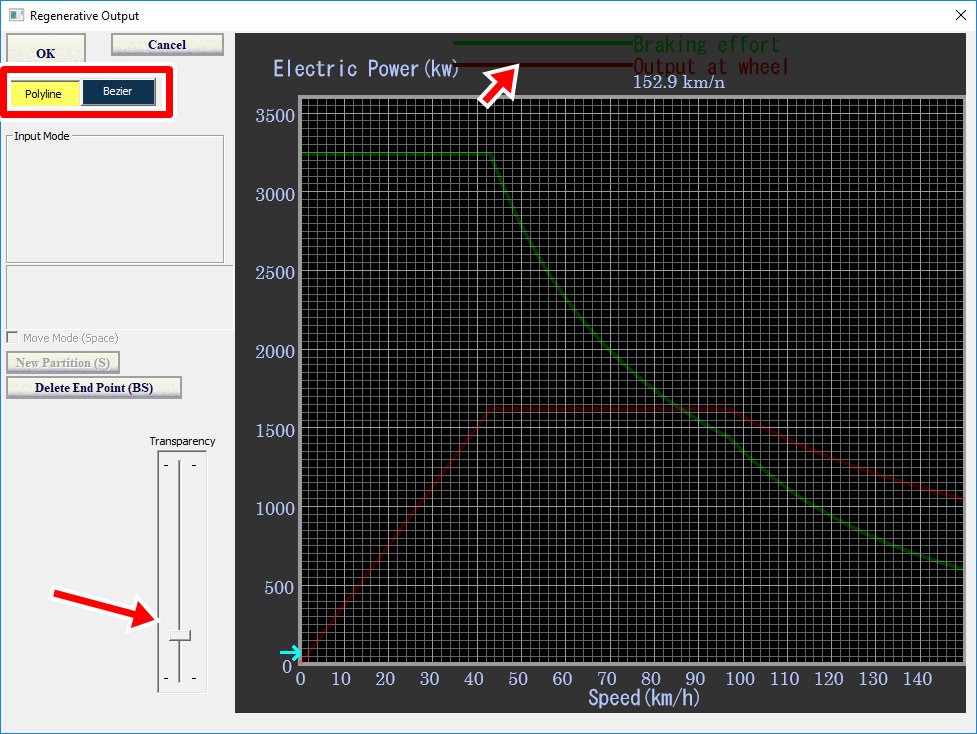

Then specify the curve type.
In this section, polyline and Bezier curve are available.

The Braking effort data and the absorbing energy at wheel rim is displayed as reference information.
The concentration of their color can be controlled by the slider at the lower left side.

The plotting method is same as "Tractive Effort".
